JVS-ND6616-HD 16CH 1HDD H.265 NVR


Key Features

• Adopt the new Vstar GUI, easy to operate and run smoothly

• Support intelligent coding VSMart, greatly reducing storage space

• Improved compatibility for HDD. Support max. of 10TB

• Support Intelligent Detection and Human Detection


Model JVS-ND6616-HD
Video & Audio
IP Camera Input 16 Channel
Audio Input/ Output 1 Channel RCA Output,16 Channel Audio output through HDMI

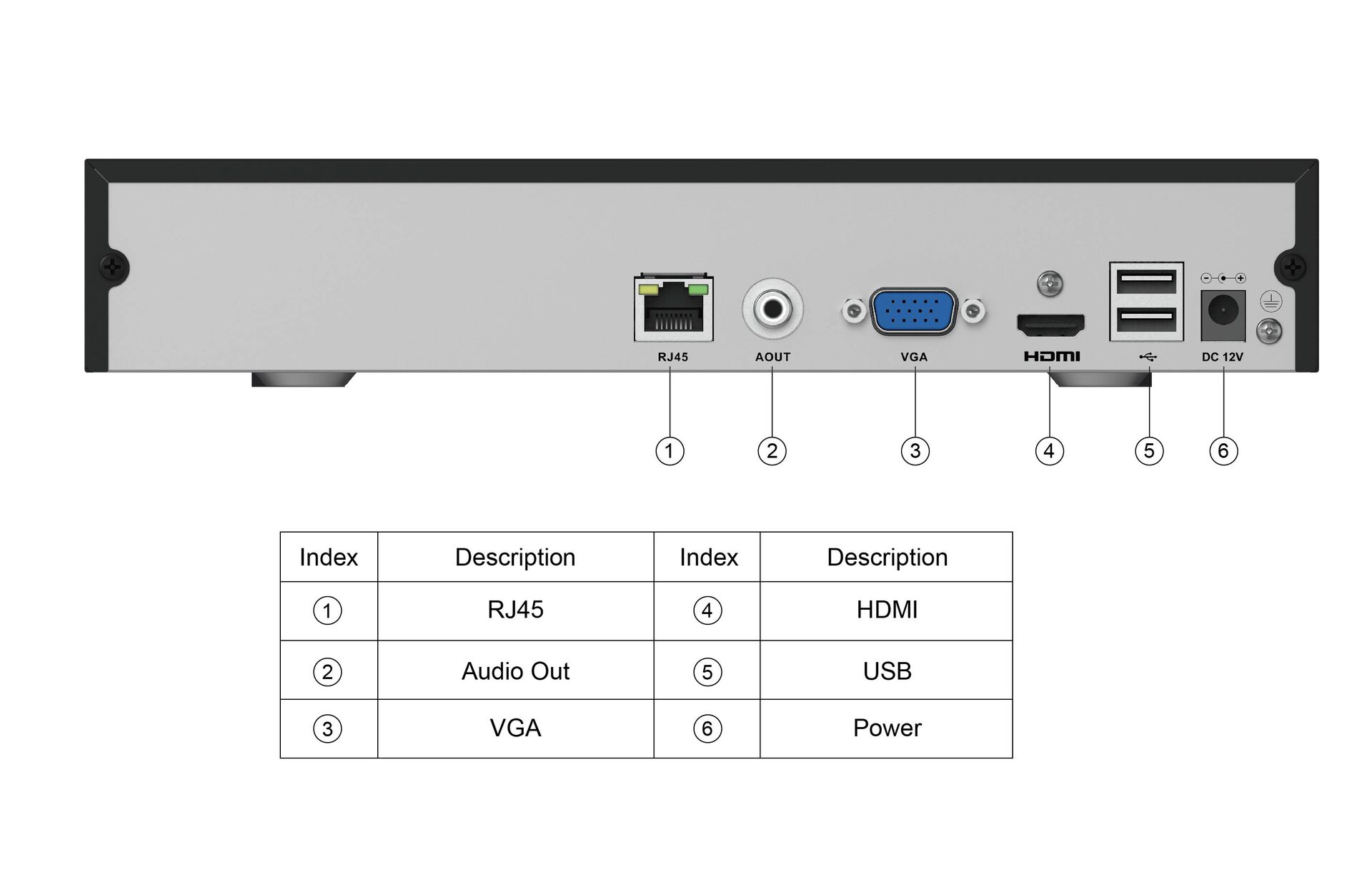

Interface 1 HDMI, 1 VGA
Resolution HDMI: 2560×1440, 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768
VGA: 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768
Max Decoding 16CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p @25fps
Multi-Screen Display 4/ 5/ 6/ 7/ 8/ 9/ 10/ 11/ 12/ 13/ 14/ 15/ 16
OSD Camera Name & Time, Recording, Alarm Detecting, Remote connection,

Volume, Channel Number

Compression H.265/H.264
Resolution 16CH 5.0MP/ 4.0MP/ 1080p/ 960p/ 720p
Record Mode Manual, Schedule, MD
Video Detection & Alarm
Trigger Events Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video Detection Motion Detection, No Video Detection
Playback & Backup
Sync Playback 1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080p
Search Mode Channel Number / Recording Type / Date
Playback Function Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward,

Slow, Step, Full Screen, Snap, Sound On/Off, Zoom

Backup Mode FAT32 USB Device/ Network
Network & Interfaces
Interface 1 RJ45 Port (10/100Mbps)
Network Function TCP/IP, DHCP, UDP, SMTP, NTP, CloudSEE
Smart Phone Support iOS, Android App
Interoperability ONVIF 2.4
SATA 1 SATA Interfaces
Capacity Up to 10TB
Power Supply DC 12V
Consumption ≤10W (Without HDD)
Working Temperature -10°C ~ 55°C
Working Humidity 10% ~ 90%
Dimensions 260x48x227mm
Weight ≤1.0kg (Without HDD)
