Sale!

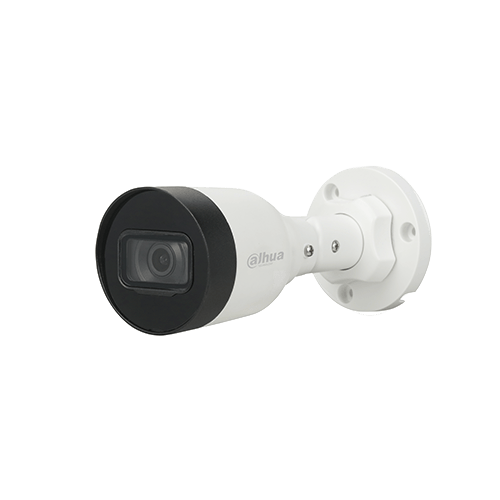

Dahua DH-IPC-HFW1230S1-S5 2MP 30 Meter IR Bullet Network Camera

$4,500.00

2MP IR Mini-Bullet Network Camera

> 1/2.7” 2Megapixel progressive CMOS
> H.265 & H.265 dual-stream encoding
> 20fps@1080P(1920×1080) & 25/30fps@1.3MP(1280×960)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6mm optional)
> Max IR LEDs Length 30m
> IP67, PoE
Categories: , ,

Description

Dahua DH-IPC-HFW1230S1-S5 2MP 30 Meter IR Bullet Network Camera

Camera
Image Sensor 1/2.7” 2Megapixel progressive’s CMOS
Effective Pixels 1920(H) x1080(V)
RAM/ROM 64MB/16MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum
Illumination
0.09Lux/F2.0(Color,1/3s,30IRE)

0.5Lux/F2.0(Color,1/30s,30IRE)

0Lux/F2.0(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.0/F2.0
Angle of View H:115°/87.5°, V:60°/47°
Focus Control Fixed
Close Focus Distance 0.6m(1.97ft)
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265 /H.264
Streaming Capability 2 Streams
Resolution 1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480)//VGA(640×480)/ CIF(352×288/352×240)

Frame Rate Main Stream: 1080P (1 ~ 20fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H265:12K~5632K

H.264:32K ~8192K

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Flip 16x
Mirror 0°/90°/180°/270°
Privacy Masking Off / On
Audio Off / On (4 Area, Rectangle)
PTZ
Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;TCP;ARP;RTSP;RTP;RTCP;UDP;DHCP;DNS;IPV4;

NTP; Multicas; ICMP; IGMP

Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage N/A
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,DMSS
Smart Phone IOS, Android
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <4.2W
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Certifications
Certifications CE: (EN 60950:2000)

FCC: FCC Part 15 Subpart B

Environmental
Operating Conditions -30° C ~ 60° C (-22° F ~ 140° F) / Less than 95% RH
Storage Conditions -30° C ~ 60° C (-22° F ~ 140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal Plastic
Dimensions Φ70mm×162.6mm(2.76”x6.49”)
Net Weight 0.22Kg(0.49lb)
Gross Weight 0.3Kg(0.66lb)

Dahua DH-IPC-HFW1230S1-S5 2MP 30 Meter IR Bullet Network Camera

DORI Distance
Detect Observe Recognize Identify Lens
43.5m(143ft) 17.4m(57ft) 8.7m(28.5ft) 4.3m(14ft) 3.6 mm
53.3m(175ft) 21.3m(70ft) 10.7m(35ft) 5.3m(17.4ft) 2.8 mm
