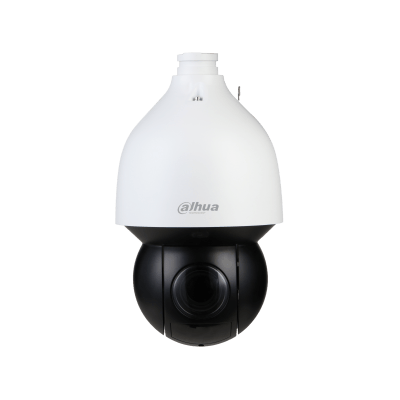

SD5A432XA-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera

$74,500.00

Categories: , ,

Description

Specification:

SD5A432XA-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera
Image Sensor 1/2.8″ STARVIS™ CMOS
Pixel 4MP
Max. Resolution 2560 (H) × 1440 (V)
ROM 4 GB
RAM 1 GB
Electronic Shutter Speed 1/1 s–1/30000 s
Scanning System Progressive
Min. Illumination Color: 0.005 Lux@F1.35
B/W: 0.0005 Lux@F1.35
0 Lux (IR on)
Illumination Distance 150 m (492.13 ft)
Illuminator On/Off Control Zoom Prio/Manual/SmartIR
Illuminator Number 4
Lens SD5A432XA-HNR 4MP 32x Starlight IR WizSense Network PTZ Camera
Focal Length 4.9 mm–156 mm
Max. Aperture F1.35–F4.4
Field of View H: 61.6°–2.1°; V: 35.1°–1.3°; D: 68.2°–2.5°
Optical Zoom 32x
Focus Control Auto/Semi-Auto/Manual
Close Focus Distance 1 m–1.5 m (3.28 ft–4.92 ft)
Iris Control Auto/Manual/Fixed
DORI Distance Detect: 3120 m (10236.22 ft)
Observe: 1232 m (4041.99 ft)
Recognize: 624 m (2047.24 ft)
Identify: 312 m (1023.62 ft)
PTZ
Pan/Tilt Range Pan: 0°–360° endless
Tilt: –15° to 90°, auto flip 180
Manual Control Speed Pan: 0.1°/s–300°/s
Tilt: 0.1°/s–200°/s
Preset Speed Pan: 400°/s
Tilt: 300°/s
Presets 300
Tour 8 (up to 32 presets per tour)
Pattern 5
Scan Power-off 5
Memory Support
Idle Motion Preset/Tour/Pattern/Scanning
Protocol DH-SD
Pelco-P/D (auto recognition)
Audio
Compression G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723
Certification
Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014UL: UL60950-1 CAN/CSA C22.2,No.60950-1
General Intelligence
Event Trigger Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.
IVS Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.
Artificial Intelligence
Smart Capture Support human, motor vehicle and non-motor vehicle image capture.
Perimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Detection Support
Auto Tracking Support
SMD PLUS Support
Video
Compression H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265 ; H.264
Streaming Capability 3 streams
Resolution 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Frame Rate Main stream: 4M/3M/1080P/1.3M/720P (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 720P (1–25/30 fps)
Bit Rate Control Variable/Constant
Bit Rate H.264: 3 Kbps–20480 Kbps
H.265: 3 Kbps–20480 Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Support
WDR 120db
HLC Support
White Balance Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp
Gain Control Auto/Manual
Noise Reduction 2D / 3D
Motion Detection Support
Region of Interest (RoI) Support
Image Stabilization Electronic
Defog Electronic
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas, and up to 8 areas in the same view
S/N Ratio ≥55dB
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability ONVIF Profile S&G&T; CGI
Storage Unicast/Multicast
User/Host 20 (total bandwidth 64M)
Storage FTP; Micro SD card (256G); NAS
Browser IE7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari
Management Software Smart PSS; DSS; DMSS; Easy4ip; IVSS
Mobile Phone IOS, Android
Port
Audio Input 1
Audio Output 1 (LINE OUT; bare wire)
Two-way Audio Support
Alarm I/O 2/1
Power
Power Supply AC 24V/3A ± 25% (standard)
PoE (802.3at)
Power Consumption Basic: 12W
Max: 20W
Environment
Operating Temperature –40°C to 70°C (–40°F to 158°F)
Operating Humidity ≤ 95%
Protection IP67; IK10; 6000V lightning proof; surge protection; voltage transient protection
Structure
Dimensions Φ190 mm × 332 mm (Φ7.48″ × 13.07″)
Net Weight 4.7 kg (10.36 lb)
Gross Weight 8 kg (17.64 lb)
