Description
Specification: Hikvision DS-7732NI-K4 32 Channel 4 HDD Supported NVR
| Video And Audio | ||
| IP Video Input | 32-ch | |
| HDMI Output | 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| VGA Output | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |
| Incoming Bandwidth | 256 Mbps 160 Mbps | |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| Decoding | ||
| Decoding Format | H.265 ,H.265,H.264 ,H.264 | |
| Decoding Capability | 8-ch @ 1080p | |
| Synchronous Playback | 16-ch | |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF, /2CIF/CIF/QCIF, | |
| Network | ||
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS | |
| Network Interface | 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces | |
| PoE | ||
| Interface | N/A | |
| RAID | ||
| RAID Type | No | |
| Auxiliary Interface | ||
| SATA | 4 | |
| Capacity | Up to 10TB capacity for each HDD | |
| Serial Interface | 1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional) | |
| USB Interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 | |
| Alarm In/Out | 16/4 | |
| General | ||
| Power Supply | ≤ 80 W | |
| Consumption | ≤ 20 W | |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) | |
| Working Humidity | 10 to 90 % | |
| Chassis | 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps) | |
| Dimension (W × D × H) | 445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″) | |
| Weight | ≤ 5 kg (11. lb) | |

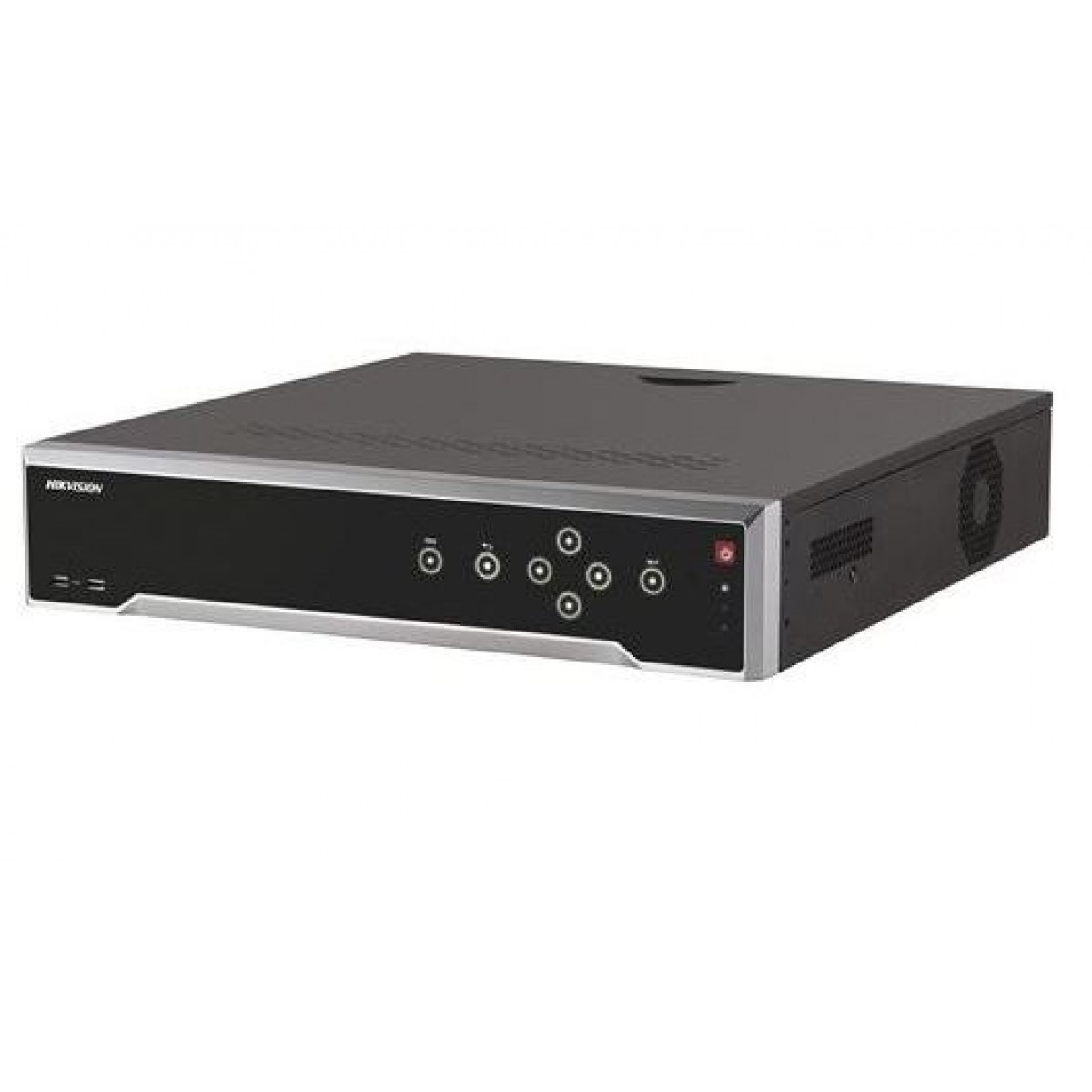

Hikvision DS-7732NI-K4 32 Channel 4 HDD Supported NVR
