Description
Specification:
| Video And Audio | ||
| IP Video Input | 8-ch | |
| HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz | |
| VGA Output | 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz | |
| Video Output Mode | HDMI/VGA simultaneous output | |
| Incoming Bandwidth | 80 Mbps | |
| Outgoing Bandwidth | 80 Mbps | |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) | |
| Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) | |

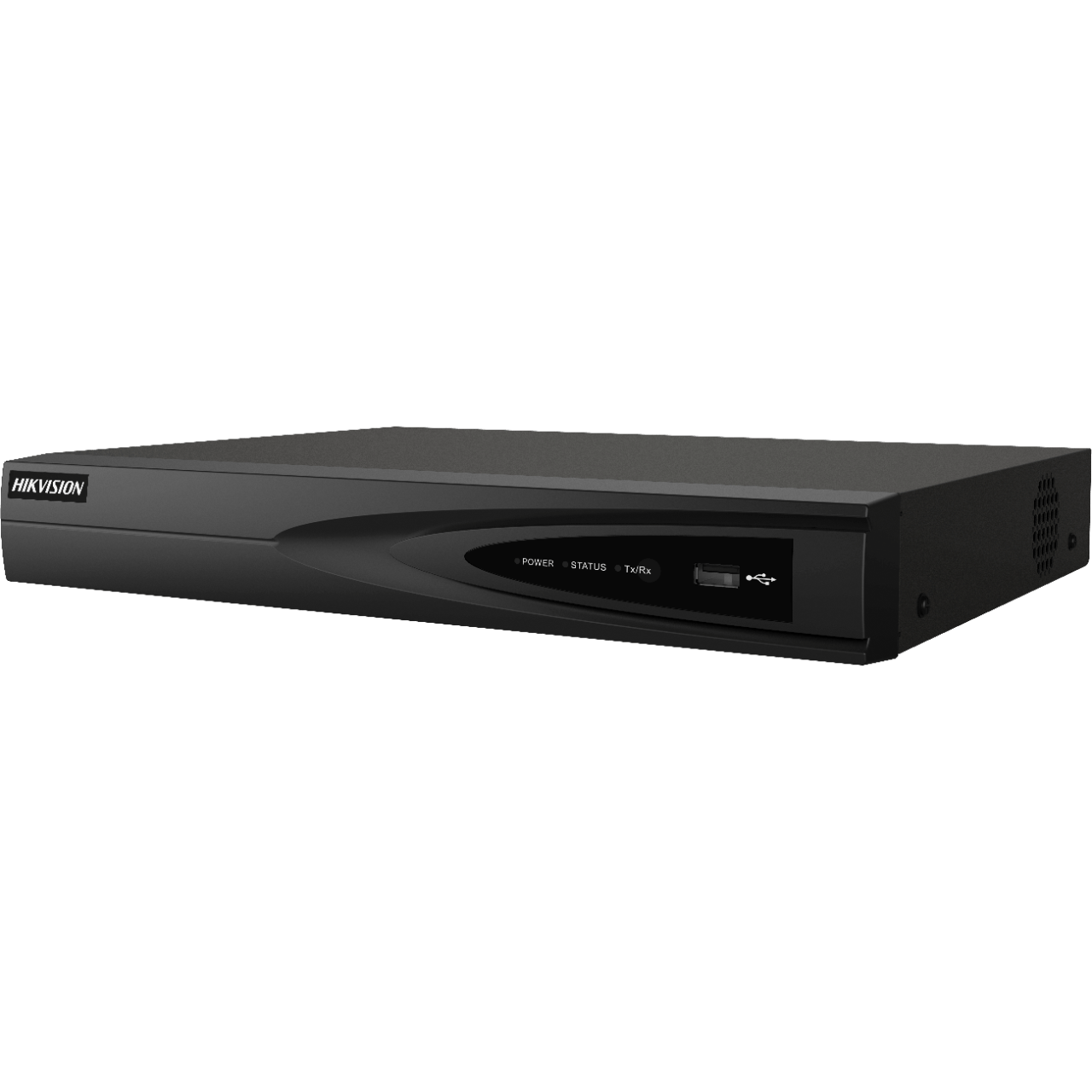

| Hikvision DS-7608NI-Q1 8 Channel | 1 HDD Supported NVR | |
| Decoding | ||
| Decoding Format | H.265 ,H.265,H.264 ,H.264 | |
| Decoding Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) | |
| Synchronous Playback | 8-ch | |
| Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF | |
| Network | ||
| Network Protocol | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS | |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface | |
| PoE | ||
| Interface | N/A | |
| RAID | ||
| RAID Type | No | |
| Auxiliary Interface | ||
| SATA | 1 SATA interface | |
| Capacity | Up to 8TB capacity for each disk | |
| USB Interface Front panel | 1 × USB 2.0; Rear panel: 1 × USB 2.0 | |
| General | ||
| Power Supply | 12 VDC, 1.5 A | |
| Consumption | ≤ 10 W | |
| Working Temperature | -10 to 55º C ( 14 to 131º F) | |
| Working Humidity | 10 to 90 % | |
| Chassis | 1U chassis | |
| Dimension (W × D × H) | 320 × 240 × 48 mm (12.4″ × 9.4″ × 1.9″) | |
| Weight | ≤ 1 kg (2.2 lb) | |
| Hikvision DS-7608NI-Q1 8 Channel | 1HDD Supported NVR | |
