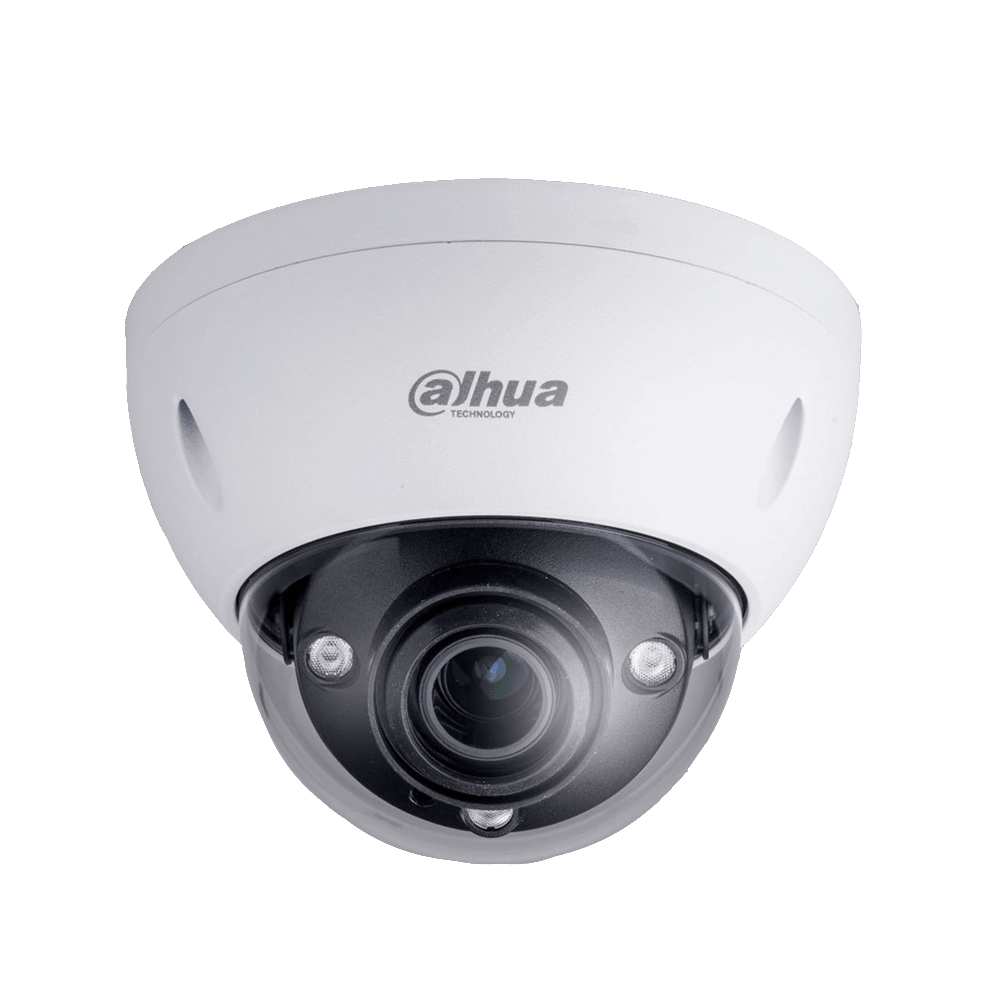

Dahua IPC-HDBW1320RP-AS 3MP 30Meter IR Dome Camera

$7,450.00

IPC-HDBW1320RP-AS

3MP IR Mini-Dome Network Camera

> 1/2.7” 3Megapixel progressive CMOS
> H.265 & H.264 dual-stream encoding
> 25/30fps@1080P(1920×1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8mm fixed lens (3.6mm optional)
> Max IR LEDs length 30m
> IP67, IK10, PoE
Categories: , ,

Description

Dahua IPC-HDBW1320RP-AS 3MP 30Meter IR Dome Camera

Camera
Image Sensor  1/3” 3Megapixel progressive CMOS
Min. Illumination 2304(H) x1536(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 18
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.0/F2.0
Angle of View H:98°/77°,V:51°/40.5°
Focus Control Fixed
Close Focus Distance N/A
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage),Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart phone iPhone, iPad, Android Phone
PTZ
Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Audio
Compression N/A
Interface
Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V PoE (802.3af)(Class 0)
Power Consumption <6.4W
Environmental
Operating Conditions -30° C ~ 60° C (-22° F ~ 140° F) / Less than 95% RH
Storage Conditions -30° C ~ 60° C (-22° F ~ 140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal Plastic
Dimensions Φ108mm×84.9mm(4.25’x3.15′)
Net Weight 0.23Kg(0.51lb)
Gross Weight 0.387Kg(0.85lb)
Video
Compression H.264 /H.264
Streaming Capability 2 Streams
Resolution 3M(2048×1536)(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate 3M(1 ~ 20fps)/2M (1 ~ 25/30fps)D1/CIF(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H264:24K ~ 8192Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off/On (4 Zone)
Electronic Image Support
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off/On
Privacy Masking Off / On (4 Area, Rectangle)
Certifications
Certifications CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Dahua IPC-HDBW1320RP-AS 3MP 30Meter IR Dome Camera

DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 58m(190ft) 23m(75ft) 12m(39ft) 6m(20ft)
3.6 mm 73m(240ft) 29m(95ft) 15m(49ft) 7m(23ft
